FAN COIL UNIT FEATURES

Manufactured in Taiwan.
High Delta T units are also available in the range.
Slim & compact design with a height of 260 mm only.
Low Noise levels.
Available in AC and EC. Motors are 4 tap wound, 3 speeds, PSC and permanently lubricated ball bearing on the motor shaft to ensure durability.
DIDW fans made of GI for long life operation.
All units are covered under a standard Sinko Japan warranty.

Stainless steel drain trays with no welding to ensure there is no corrosion and has lifelong performance.
Insulated on the outside with fire retardant foam insulation for safety.
Water inlet and outlet are provided with female sockets for easy & tidy connection.
Return air plenum lined with 10 mm thick face hardened insulation with knockouts on the sides for electrical connection.
ISO 9002 certified.
Tested as per JIS standards for Acoustic performance and ARI 440 standard for cooling capacity test.

SRC AC/ GSRC EC MOTOR SERIES

Applicable to Various Kinds of Static Pressure Requirements and Specially Designed for Low Sound Operation.

Low Noise levels.
Available in AC and EC. Motors are 4 tap wound, 3 speeds, PSC and permanently lubricated ball bearing on the motor shaft to ensure durability.
SINKO engineered, double-inlet and double- width (DIDW) metal fan-wheels statically and dynamically factory-balanced.
AC 220-240/1/50Hz rated, enclosed permanent split capacitor motor incorporating ball race bearing assuring users of a long and reliable operation. Motor leadout wires are sheatled and protected by flexible metal conduit.
Rigidly fabricated with galvanized sheet to the designed configuration. Esay to hook up to suspension bolts.

TCRH AC/ GTCRH EC MOTOR SERIES

New TCR-H series High-Static model will give an alternative to the conventional MEGA series for its height. The unit height is only 365mm, which is lower than MH unit’s height by 85mm. The unit can operate to the maximum external static pressure of 150Pa due to its powerful fan-motor combination. The total width still allows installation in limited job-site space.

180mm fan wheels are used for high-static pressure application and large air volume handling.
AC240V/1/50Hz, hi-powered, permanent-split capacitor motor is specially chosen for this series of unit.

MH SERIES

3 speeds motor is mounted.

For Higher CAPACITY, Long-Ducted Systems

Mega 1 Fan Coil Unit is available in horizontal model.

Large Capacity Units

For cooling: Max. 19,000 watt with Modle MH 504 unit

External S. P.: 0~100Pa subject to derating in performance

Selective Coil Rows

Standard selection is allowed of either 2-row or 4-row coil form both cooling & heating, referring to the specific duties required of the unit to be used.

4-row unit can be used for 4-pipe system with 3-row cooling/1-row heating split circuit coil supplied with the unit.

Quiet Yet Powerful

Sinko designed original all-aluminum fan guarantees both quiet and powerful air supply, allowing use of long duct work system.

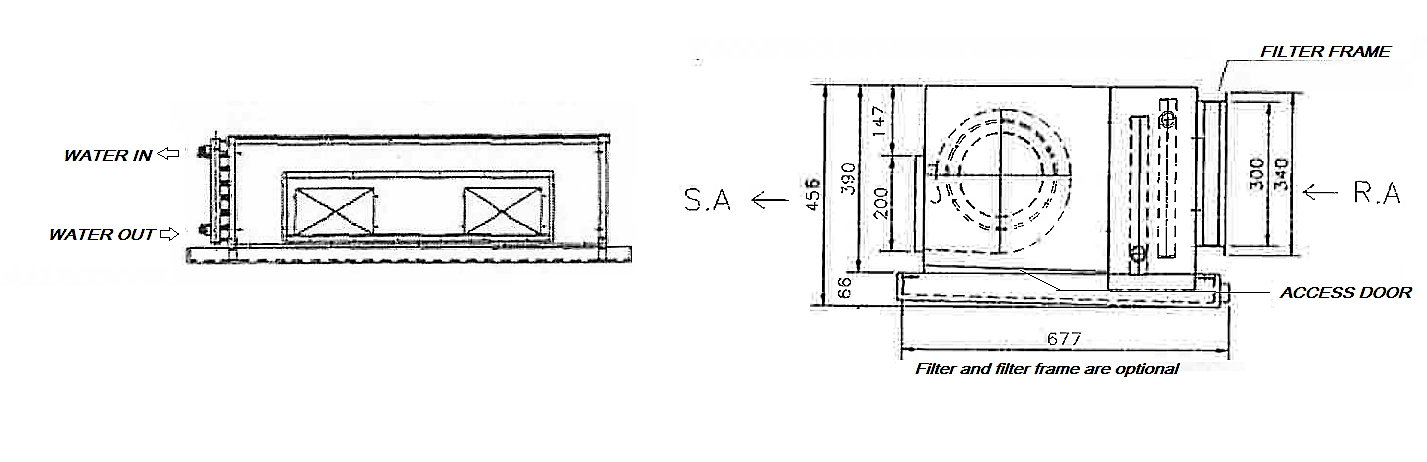

MH: Horizontal Recessed

Note:

Above data is based on 50Pa external static pressure.
3- speed motor is mounted.

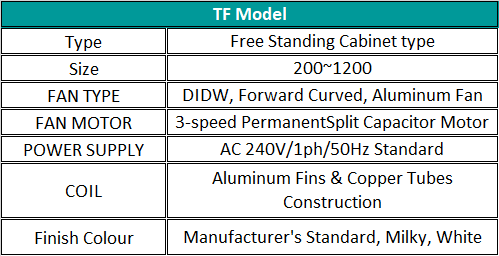

TFVL AC / GTFVL EC MOTOR VERTICAL SERIES

Model TFVL Column Fan Coil Unit can provide the maximum economy and air conditioned comfort.

Quite fan wheel of 9” × 9” or 10” × 10” diameter driven by factory assembled quality motor.
3-speed PSC motor or EC type motor.
Sealed for life, low noise ball bearing.
Maximum safety by metal covered motor-condenser and flexible metal conduit.
3-row cooling for 2-pipe operation.
3-row cooling + 1-row heating for 4-pipe operation.
Model TFVL unit is fabricated by rigid AL-ZN coated steel casing complete with well-balanced metal constructed DIDW fan(s) driven by PSC motor(s) to suit required field power source using metal-covered consenser and protected by flexible metal or plastic conduit.
3-row or 4-row coil(optional 3-row cooling + 1-row heating split circuit
for Model TFVL-DC).
10 mm fiberglass casing insulation and 6mm standard high density, selffire-extinguishing drain pan insulation.
For servicing purpose, the fan motor deck can be removed from the coil
section by externally unscrewing the fixures accessible from the front of
the unit.
Standard plenum can be fitted to the unit if required.
